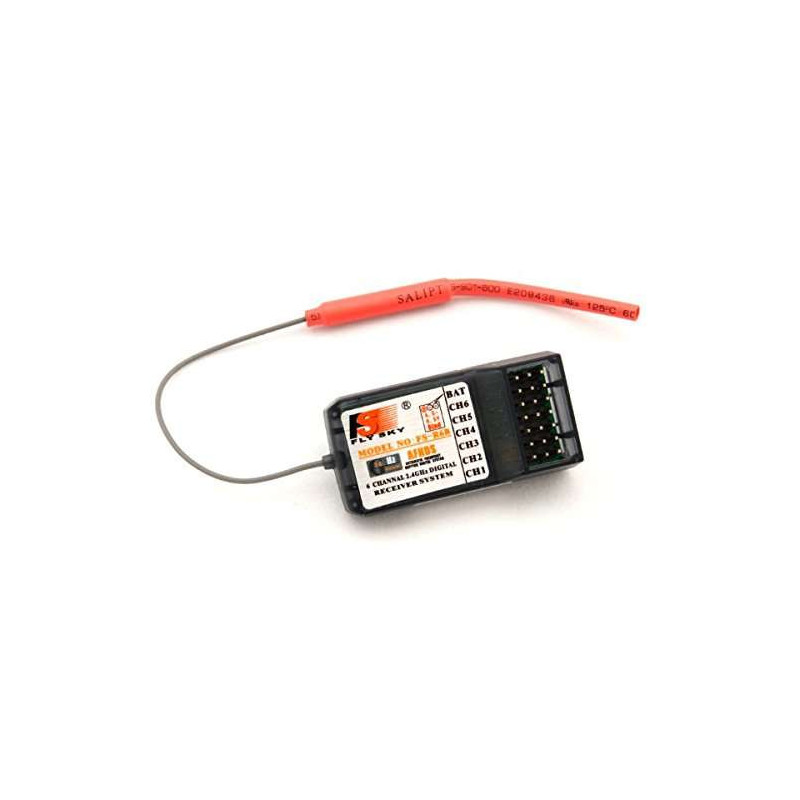

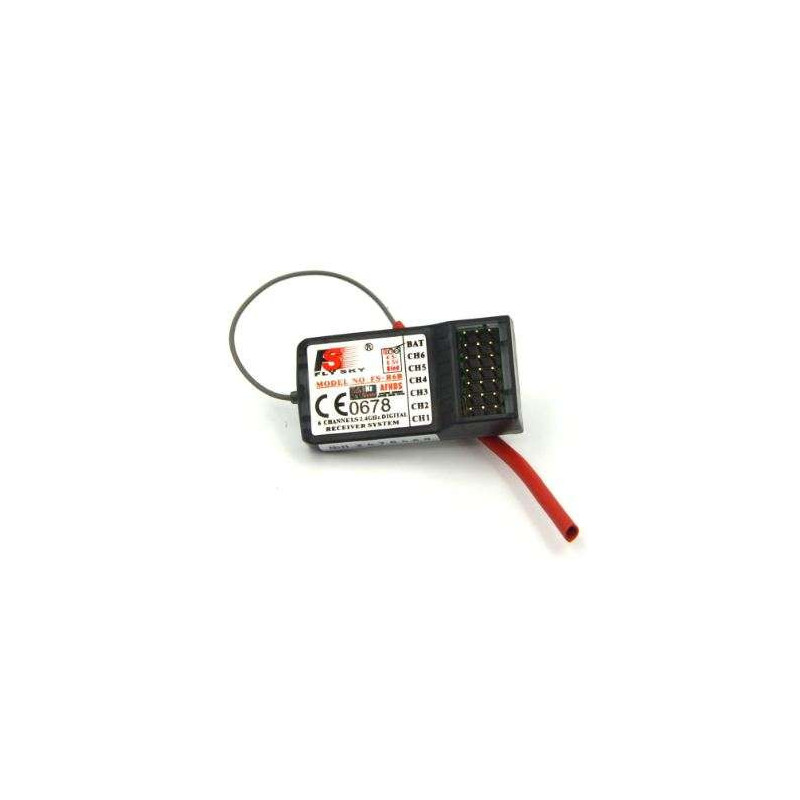

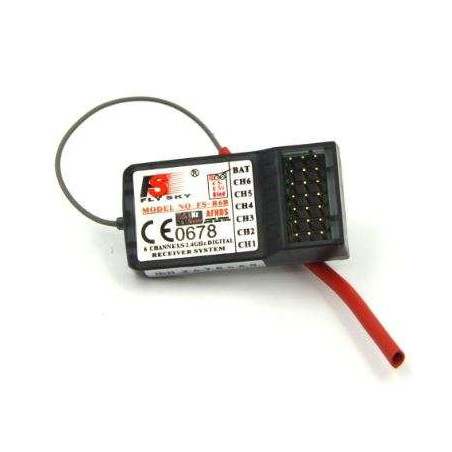

FlySky FS-R6B Receiver

The FlySky FS-R6B is a compact 6-channel 2.4GHz receiver designed for reliable, interference-free control of your RC aircraft. Using FlySky’s AFHDS protocol, it delivers stable connectivity and responsive performance with a range of 500 to 1000 metres (in the air). The receiver features a single 150mm antenna and standard PWM outputs, all in a lightweight and CE-certified design.

The FS-R6B is typically used with FlySky T4B transmitters, ensuring seamless compatibility for fixed wing models and gliders. It supports a wide operating temperature and humidity range, making it suitable for various flying environments.

Specifications:

• Product Model: FS-R6B

• PWM channels: 6

• Wireless frequency: 2.4GHz

• Wireless protocol: AFHDS

• Range: 500 to 1000m (in the air)

• Antenna type: single antenna (150mm)

• Power supply: 4.0–6.5 V

• RSSI: Not supported

• Data port: PWM

• Temperature range: 0°C to +60°C

• Humidity range: 20%–95%

• Online update: No

• Dimensions: 45 x 23 x 13 mm

• Weight: 13 g

• Certification: CE

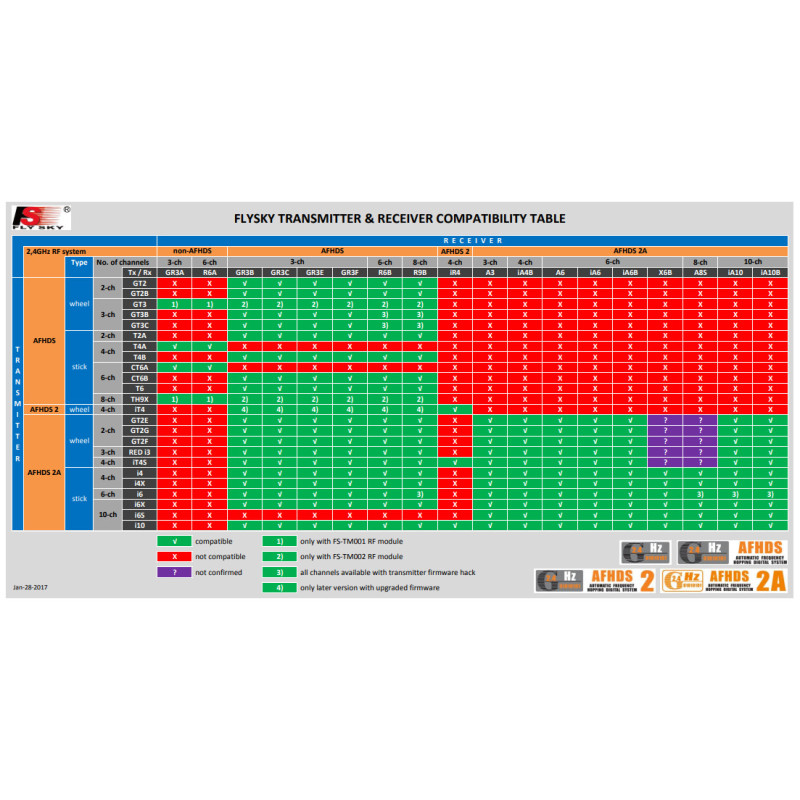

• Compatibility: Typically used with FlySky T4B transmitters

Includes:

• 1 x FlySky FS-R6B 6-Channel 2.4GHz Receiver
