EV-Peak C1-XR Multi Chemistry Dual Input Balance Charger/Discharger
R875.00
Tax included
The EV-Peak C1-XR is a 100 watt, 10 amp AC DC balance charger discharger for LiPo, LiHV, LiFe, NiMH, NiCd and Pb packs, ideal for RC planes, Helis, Drones and Cars in South Africa.
Secure and Safe Payment Methods
Using Payfast's multi payment Secure Gateway
Fast Reliable Shipping
Choose between Pickup, The Courier Guy or Fastway Couriers.
Unrivalled Service and Satisfaction
Fast response times, expert support, and dependable results.
The EV-Peak C1-XR is a high-performance, compact balance charger/discharger built for RC hobbyists seeking reliability and versatility. With support for multiple battery chemistries—including LiPo, LiHV, LiFe, NiMH, NiCd, and Pb—this charger offers a flexible solution for maintaining your power systems.
It delivers up to 100W of charging power and a current range adjustable from 0.1A to 10A, allowing for efficient charging tailored to your needs. The dual-input design supports both AC and DC power sources, providing convenience whether you're at home or in the field.
Equipped with a backlit LCD screen and intuitive navigation buttons, the C1-XR gives clear visibility of charge status and settings. Integrated safety features, such as overcurrent, overtemperature, and overcharge protection, ensure safe operation. The unit also includes memory functionality, enabling storage of up to 10 custom charge profiles.
Key features
• 100 watt charge power and up to 10 amp charge current for fast charging of typical 2S to 6S LiPo packs
• AC input from 100 to 240 volt for home use and DC input from 11 to 18 volt for running from a car or field battery
• Supports LiPo, LiHV, LiFe, NiMH, NiCd and lead acid packs in one charger
• Handles 1 to 6 cell lithium packs and up to 15 cell nickel packs, plus 2 to 20 volt Pb batteries

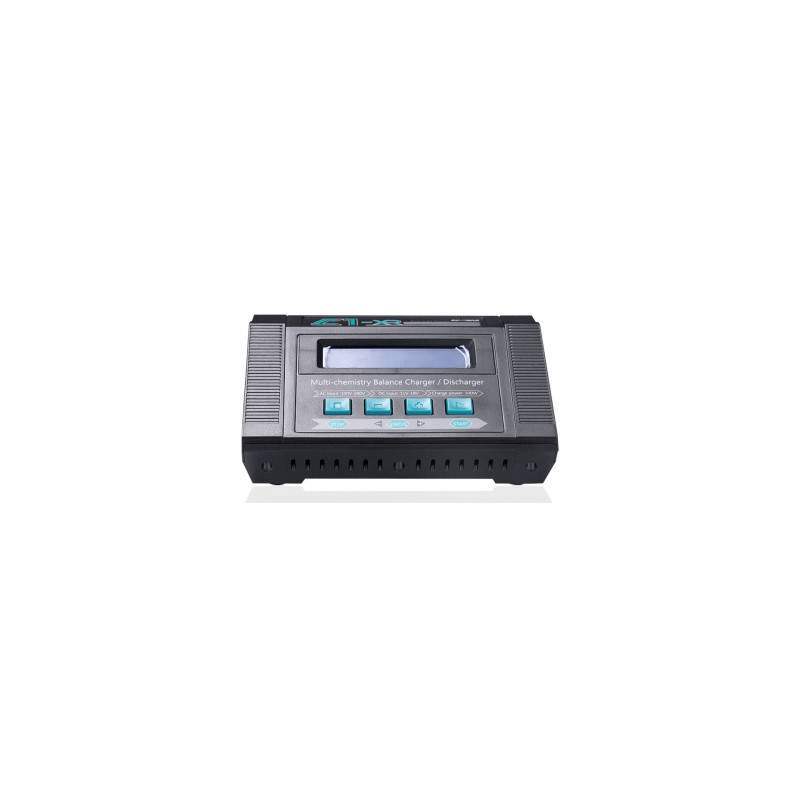

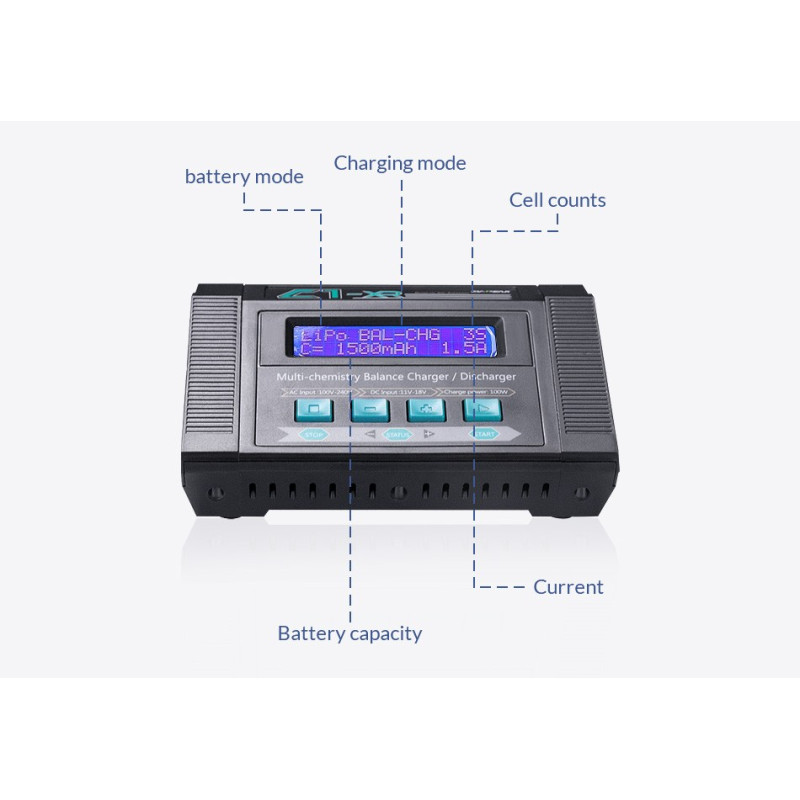

• Backlit LCD and four button interface for clear status and easy setup
• Storage charge, balance charge, discharge and cycle functions for keeping packs healthy
• Ten profile memories so you can store settings for your most used packs
• Built in battery voltage and internal resistance meter to help monitor pack condition
Who this charger suits
The C1 XR is a good step up from very basic wall chargers. It suits RC pilots who:
• Anyone who requires charging of 1S to 6S packs or any other chemisty battery
• Use 2S or 3S LiPo and LiFe receiver packs
• Want one charger that can handle lithium, nickel and Pb packs without swapping hardware
• Need a compact field charger that can run from a car battery or power supply
Includes:
1 X C1-XR Charger

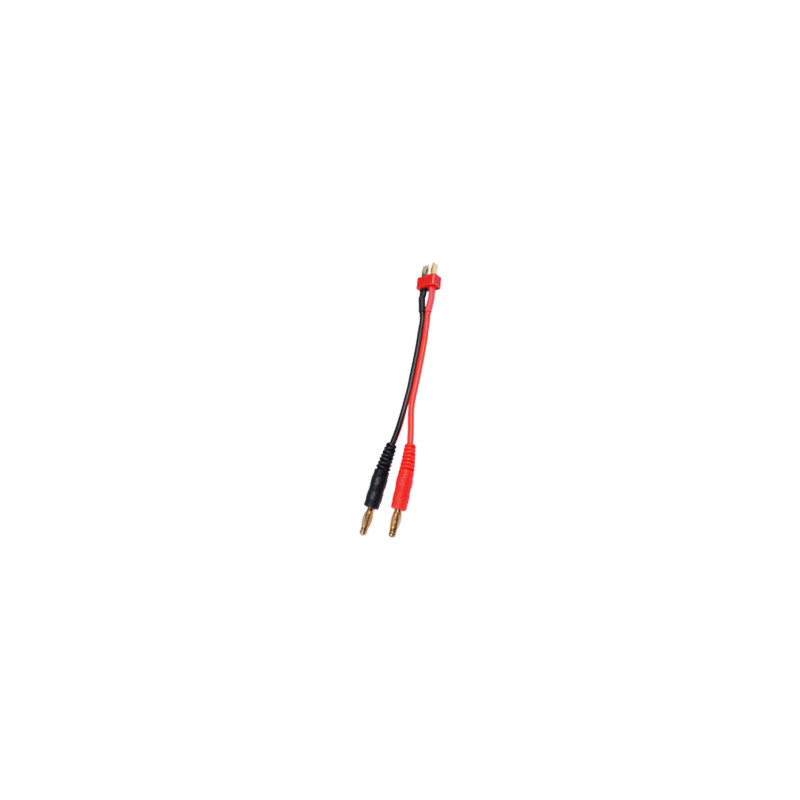

1 X Charge Lead with Deans Connector

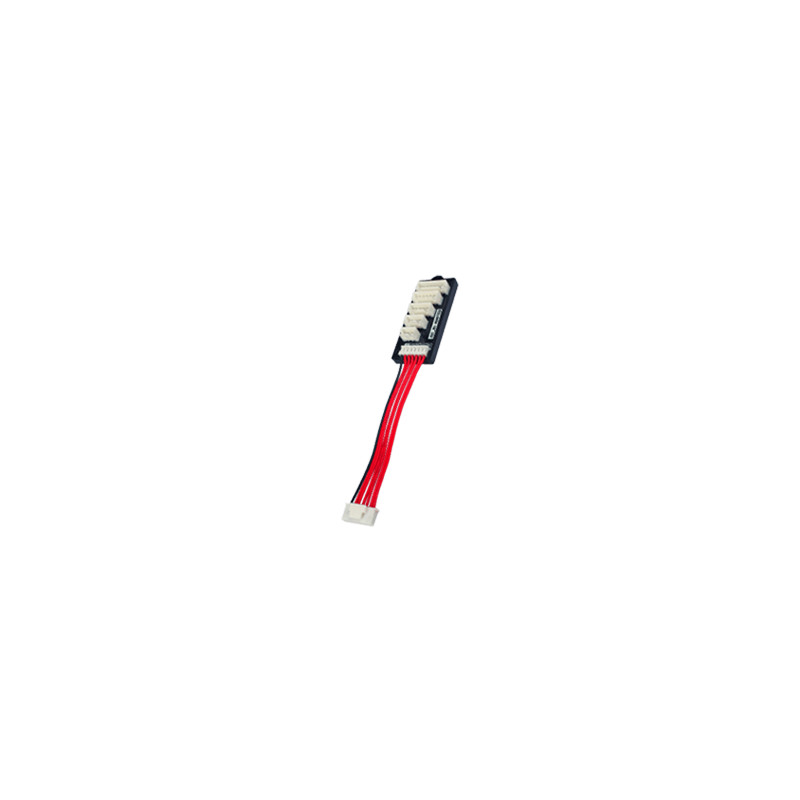

1 X Balance Board and Cable
1 X Manual
C1-XR
2 Items
EV-PEAK C1-XR Charger FAQ
The EV Peak C1 XR supports up to 6 cells on lithium packs and up to 15 cells on nickel packs.
For lithium it handles 1 to 6 cell LiPo, LiIon, LiFe and LiHV packs.
For nickel it handles 1 to 15 cell NiMH and NiCd packs.
For lead acid it works in a voltage range of about 2 to 24 volt which is typically 1 to 12 cells at 2 volt per cell.
Yes, the C1 XR is designed to work on both mains and DC. It has a built in AC power supply that accepts 100 to 240 volt mains, so it will run fine on 220 to 240 volt in South Africa. It also has an 11 to 18 volt DC input, so you can power it from a car battery or DC power supply at the field.
The charger is genuinely multi chemistry. It supports LiPo, LiIon, LiFe and LiHV lithium packs, plus NiMH, NiCd and Pb lead acid batteries. There is a separate mode for LiHV that allows a higher end voltage than normal LiPo, so you must only use that mode with packs that are rated as LiHV by the manufacturer.
The C1 XR is rated at 100 watts of charge power with a maximum charge current of 10 amps. In practical terms that is plenty for common 2S to 4S car and plane packs and for typical 4S to 6S FPV drone packs, as long as you set a sensible charge rate that stays within the 100 watt limit.
Yes, the charger includes balance charge, normal charge, discharge, storage charge and cycle modes. It also has functions to display pack voltage and internal resistance, which helps you monitor the condition of your batteries over time and store them at safe voltages when you are not flying.
If a product is marked In Stock on our website, it means we physically have the item in stock with us in South Africa and it is ready to ship. If a product is marked Out of Stock, then it is not currently available. You can also check the Product Details tab on the page to see the current stock quantity. We are not a drop shipper, the stock status shown on our site reflects what we actually have on hand.
