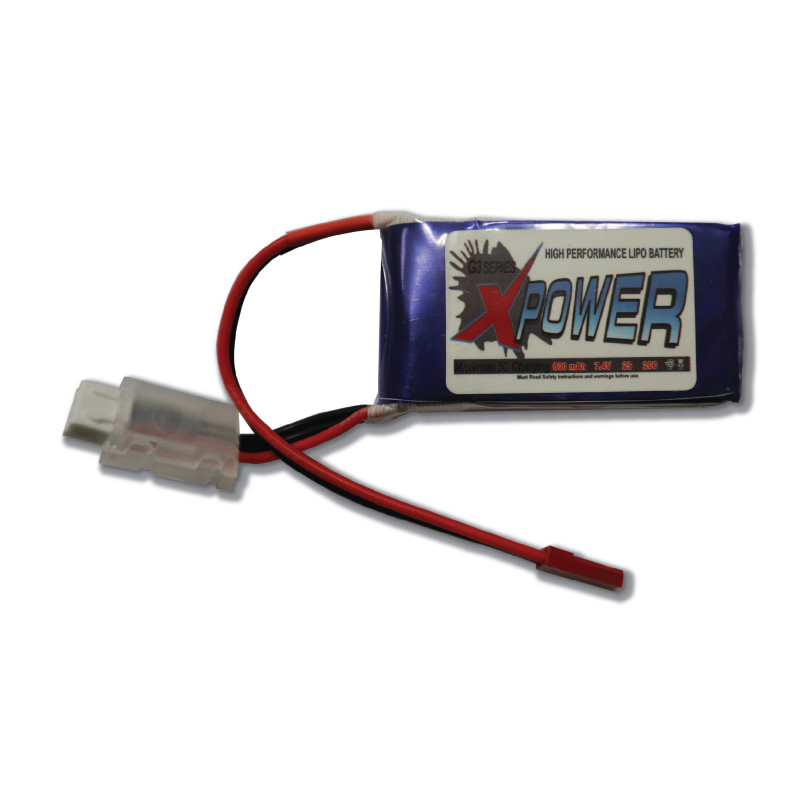

XPower 800Mah 7.4v 2S 20C LIPO Battery
R195.00
Tax included
Compact XPower 800mAh 7.4v 2S 20C LiPo battery with JST connector, ideal for small RC planes, park flyers, gliders and lightweight FPV models that need a reliable 2S flight pack in a compact size.
Secure and Safe Payment Methods
Using Payfast's multi payment Secure Gateway
Fast Reliable Shipping
Choose between Pickup, The Courier Guy or Fastway Couriers.
Unrivalled Service and Satisfaction
Fast response times, expert support, and dependable results.
The XPower 800mAh 7.4v 2S 20C LiPo battery is a compact, lightweight pack designed for smaller RC models and auxiliary systems. With a nominal voltage of 7.4v and a 20C continuous discharge rating, it delivers smooth, predictable power for light duty setups where efficiency and low weight matter more than brute power.
This pack is a great match for small foam park flyers, slope wings, gliders, indoor 3D models and lightweight FPV aircraft that are designed around 2S LiPo power. The JST connector makes it especially well suited to smaller ESCs and receivers that expect this plug style, while the compact 60mm x 30mm x 13mm case size helps it fit into tight bays and slim fuselages.
XPower LiPo batteries are known for stable voltage, low internal resistance and consistent performance from pack to pack. Used with a proper LiPo compatible charger and sensible cut off settings, this 2S 800mAh pack will give you reliable runtimes and repeatable performance flight after flight.
Typical uses for this 800mAh 2S pack
Small foam park flyers, slope wings and gliders, indoor 3D models, lightweight FPV aircraft, small boats and auxiliary electronics that need a compact 2S 7.4v LiPo with a JST connector.
Key features
- Capacity: 800mAh 7.4v 2S LiPo for small RC models
- Discharge rating: 20C continuous (up to 16A under ideal conditions)
- Connector: JST discharge lead with standard balance plug
- Compact case size: approximately 60mm x 30mm x 13mm for tight battery bays
- Lightweight pack to keep wing loading and all up weight down
- Well suited to park flyers, gliders, indoor models and lightweight FPV builds
XP-2S20c800mah
2 Items
LiPO Battery FAQ
You choose a LiPo pack based on three main numbers, voltage, capacity and C rating. Voltage comes from the cell count, for example 2S is 7.4v, 3S is 11.1v. Capacity in mAh affects flight time, higher capacity usually gives longer runtimes but also more weight. C rating indicates how much current the pack can safely supply. Your model and ESC manual will normally list a recommended cell count and an approximate capacity range to use as a guide.
The S number tells you how many cells are connected in series inside the pack. A 2S pack has two cells and a nominal voltage of 7.4v, a 3S pack has three cells and 11.1v, and a 4S pack has four cells and 14.8v. Higher S counts give more voltage to the motor, which usually means more power but also higher load on the ESC and motor. You must only use the cell count that your model and electronics are designed for.
The C rating is a guide to how much current the pack can safely deliver. You can estimate the continuous current limit by multiplying the pack capacity in amp hours by the C rating. For example a 2200mAh pack is 2.2Ah, at 30C that is roughly 2.2 times 30 which equals 66 amps. These numbers are guidelines, not guarantees, so it is sensible to choose a pack with some safety margin above the maximum current your model is expected to draw.
LiPo batteries must always be charged with a LiPo compatible balance charger using the correct cell count and charge current. A common rule is to charge at 1C, which means a 2200mAh pack is charged at 2.2 amps. The balance plug must be connected so the charger can monitor each cell. Packs should be charged on a non flammable surface and should not be left unattended while charging.
LiPo batteries last longest when they are stored partially charged rather than full or completely flat. Most chargers have a storage mode that charges or discharges the pack to about 3.75 to 3.85 volts per cell. Packs should be stored in a cool, dry place, away from direct sunlight and sharp objects, and should be checked periodically so that they do not sit for long periods at very low voltage.
Most models will start to feel noticeably down on power when the LiPo is getting low. It is best to land or stop as soon as you feel that drop rather than squeezing out extra minutes. Many ESCs have a low voltage cut off that will reduce power or shut the motor down to protect the pack. As a rule of thumb, aim to use only about 70 to 80 percent of the pack’s capacity and keep the voltage under load from dropping much below about 3.5 volts per cell during use.
If a product is marked In Stock on our website, it means we physically have the item in stock with us in South Africa and it is ready to ship. If a product is marked Out of Stock, then it is not currently available. You can also check the Product Details tab on the page to see the current stock quantity. We are not a drop shipper, the stock status shown on our site reflects what we actually have on hand.
Yes, we are more than happy to guide you through the world of LiPo batteries. Please first read our article on LiPo batteries here: https://theflitelab.co.za/content/16-the-big-lipo-guide
