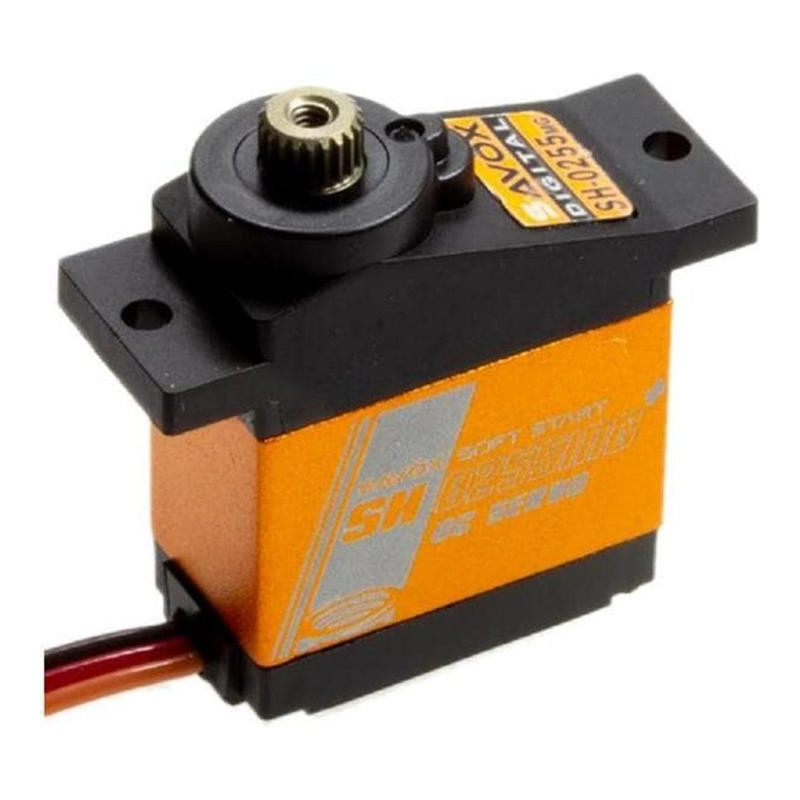

Savox SH-0255MG+ 3.9kg Micro Digital Metal Gear Servo

The Savox SH-0255MG+ is a compact micro digital servo with a precision metal gear train, aluminium middle case and Soft Start function. It delivers up to 3.9kg-cm of torque at 6.0V while weighing only 15.8g, providing strong control performance without the size and weight of a standard servo.

It is designed for small RC aircraft and 450 size helicopters, including cyclic, rudder and other control applications that match its specifications. Before installation, confirm the 22.8mm x 12mm x 29.4mm case size, 4.8V to 6.0V operating range and 21T output spline against your model and servo horn.

The Plus version includes Soft Start and Sanwa SSR compatibility. Its single ball bearing, metal gears and aluminium centre section provide smooth operation and improved durability in compact installations.

Key features and specifications

• Servo type: Micro digital servo
• Motor type: Brushed DC motor
• Operating voltage: 4.8V to 6.0V
• Torque at 4.8V: 3.1kg-cm
• Torque at 6.0V: 3.9kg-cm
• Speed at 4.8V: 0.16sec/60°
• Speed at 6.0V: 0.13sec/60°
• Gear material: Metal
• Case: Composite with aluminium middle section
• Bearings: 1 ball bearing
• Output spline: 21T

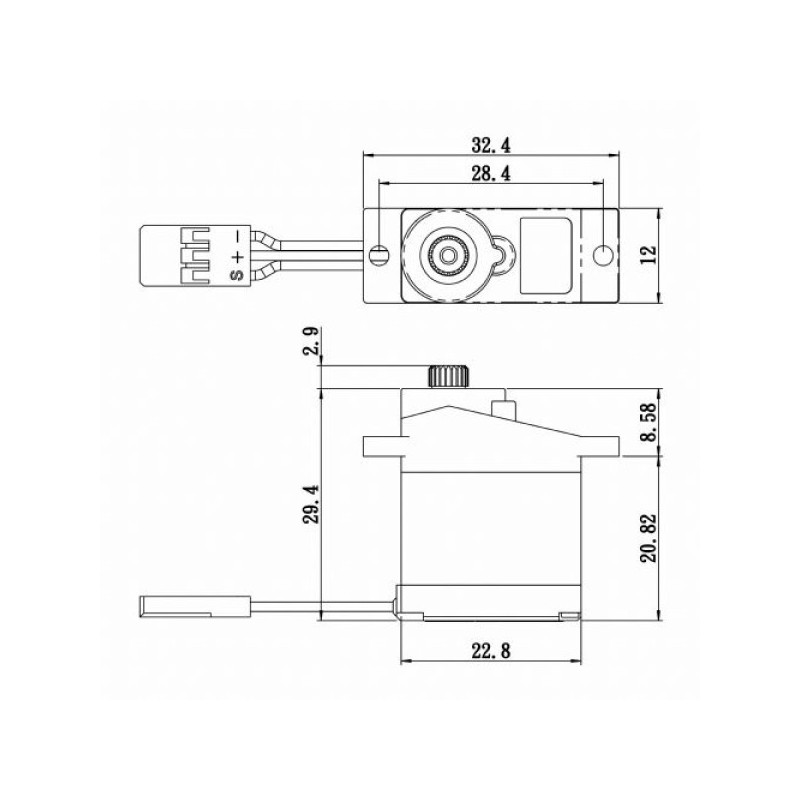

• Dimensions: 22.8mm x 12mm x 29.4mm
• Weight: 15.8g
• Wire length: 250mm ± 5mm
• Soft Start: Yes
• Sanwa SSR compatible: Yes

Includes

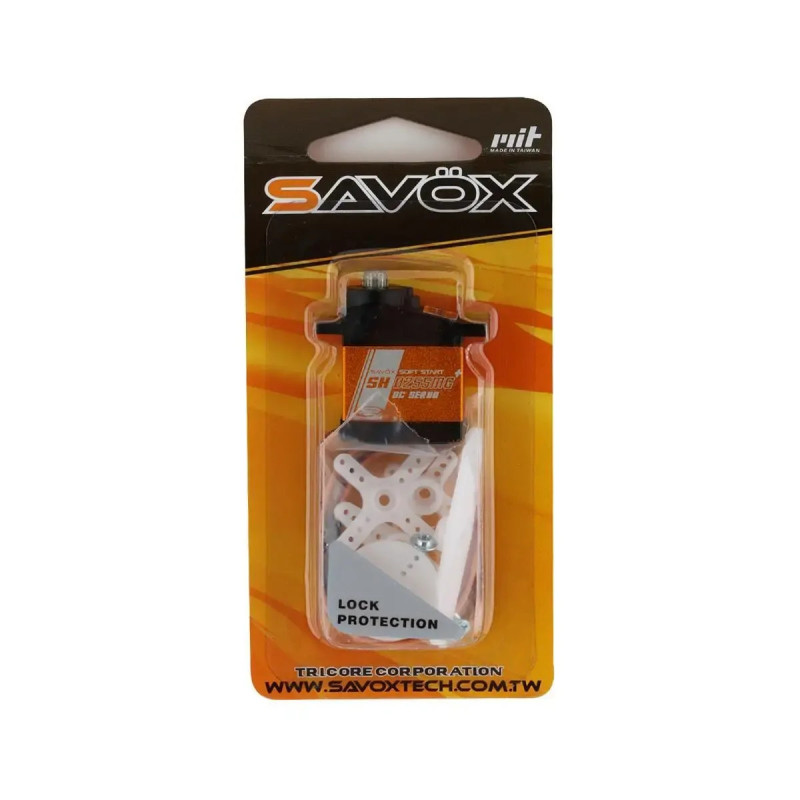

• 1 x Savox SH-0255MG+ micro digital servo
