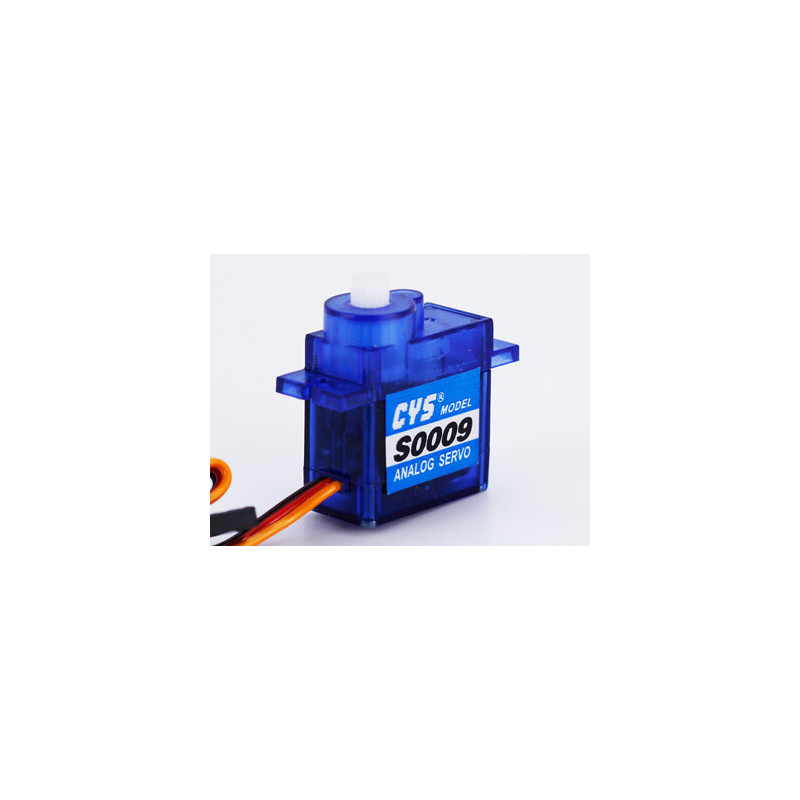

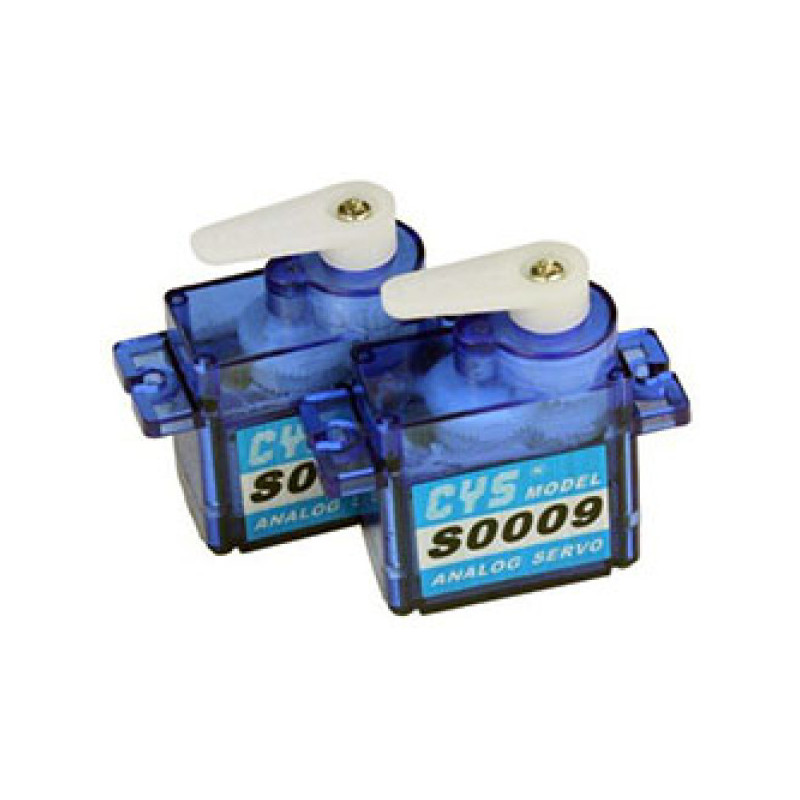

CYS S0009 9g Micro Servo
R115.00
Tax included
The CYS S0009 is a compact 9g analog micro servo with plastic gears for lightweight RC aircraft, robotics and other models using 4.8V to 6.0V servo power.
Secure and Safe Payment Methods
Using Payfast's multi payment Secure Gateway
Fast Reliable Shipping
Choose between Pickup, The Courier Guy or Fastway Couriers.
Unrivalled Service and Satisfaction
Fast response times, expert support, and dependable results.
The CYS S0009 is a lightweight 9g analog micro servo designed for RC aircraft, robotics and other applications where a compact servo is required. Its small 22.3mm x 11.8mm x 26.3mm dimensions make it well suited to smaller models and installations where space and weight are important.
Operating from 4.8V to 6.0V, the S0009 delivers up to 1.5kg.cm stall torque and a speed of 0.10sec/60° at 6.0V. The servo uses plastic gears, an iron core motor and a 21T output spline.
This is the standard analog plastic gear S0009 model and should not be confused with the metal gear or digital versions in the CYS S0009 range.
Key features and specifications
- Model, CYS S0009
- Type, analog micro servo
- Weight, 9g
- Dimensions, 22.3mm x 11.8mm x 26.3mm
- Operating voltage, 4.8V to 6.0V
- Stall torque at 4.8V, 1.2kg.cm
- Stall torque at 6.0V, 1.5kg.cm
- Operating speed at 4.8V, 0.12sec/60° at no load
- Operating speed at 6.0V, 0.10sec/60° at no load
- Gear type, plastic
- Motor type, iron core
- Output spline, 21T
- Control system, pulse width control with 1500µs neutral
- Pulse range, 1000µs to 2000µs
- Dead band, 4µs
- Servo lead length, 180mm
- Operating temperature, -10°C to +50°C
Includes
- 1 x CYS S0009 9g analog micro servo
