King Stick Foam Board Kit – 967mm Wingspan
R725.00
Tax included
The Flite Lab King Stick Foam Board Kit is a 967mm wingspan Rapid Build Series model, laser cut from Creator Foam Board and ply, designed to finish around 600g all up for stable sport flying, touch and go landings and gentle aerobatics using 4x 9g servos, an 800g thrust brushless motor, a 9 inch propeller and a small 3S LiPo.
Secure and Safe Payment Methods
Using Payfast's multi payment Secure Gateway
Fast Reliable Shipping
Choose between Pickup, The Courier Guy or Fastway Couriers.
Unrivalled Service and Satisfaction
Fast response times, expert support, and dependable results.
Choose your Addons!
Electronic Accessories
|
|
|
|
Budget 30A ESC (Electronic Speed Controller) |
|
|
|
|
|
Gens Ace 1300Mah 3S 11.1v 30C Soaring LIPO Battery |
|
|
FlySky FS-i6X Transmitter and Receiver |
Building Accessories
The King Stick Foam Board Kit from The Flite Lab is a precision laser cut RC airplane designed for easy assembly and dependable everyday flying. With a 967mm wingspan, 735mm fuselage length and a typical all up weight of around 600g, it offers stable handling, smooth landings and a wide performance range that suits both relaxed circuits and basic aerobatics.
This Rapid Build Series model is cut from high quality Creator Foam Board with matching ply parts, carbon tube pushrods and pre bent landing gear to create a strong but lightweight airframe. Proven foam board construction techniques keep the build straightforward, while the combination of wing area and 31g/dm² wing loading gives a forgiving feel in the air with enough authority for loops, rolls and general sport flying.
The kit is supplied as a bare airframe and hardware set so you can reuse radio gear you already own or choose your own electronics. A typical setup uses 4x 9g servos, a brushless motor capable of around 800g of thrust, a 9 inch propeller, a suitable ESC and a 3S LiPo pack, controlled by at least a 4 channel radio system. A downloadable build manual is included to guide you step by step from the first glue joint through to final radio setup and maiden flight.
Typical uses
- Everyday sport flying at your RC club or local sports field
- General training model for pilots moving on from basic high wing trainers
- Practice platform for circuits, touch and go landings and simple aerobatics
- Test bed for different prop, motor and battery combinations in the 600g AUW class
Key features
- 967mm wingspan foam board sport model with 600g typical all up weight
- Laser cut Creator Foam Board and ply parts for accurate fits and straight builds
- Carbon tube and piano wire pushrods with pre bent landing gear and wheel collars
- Beginner friendly handling with 2/5 build difficulty and 2/5 flying difficulty
- Comfortable slow speed performance with enough authority for loops and rolls
- Rapid Build Series design that can be completed over a few relaxed evenings
- Downloadable King Stick build manual included in the attachments tab
Specifications

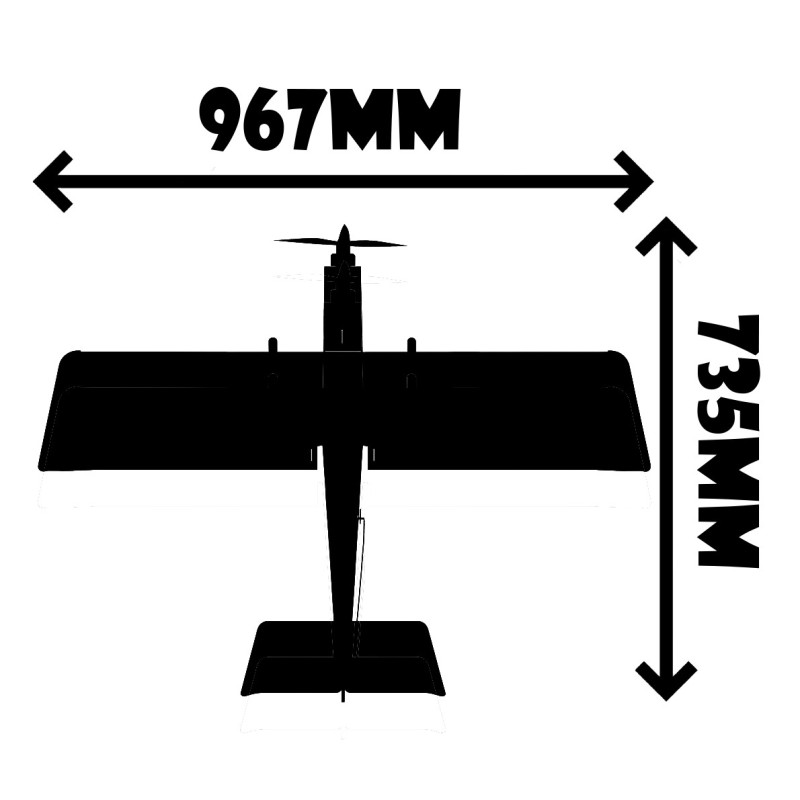

- Wingspan: 967mm
- Length: 735mm
- Typical all up weight (AUW): 600g
- Dry weight (DW): 480g
- Wing loading (WL): 31g/dm²
Recommended electronics (not included)
- Servos: 4x 9g micro servos
- Motor: brushless outrunner capable of around 800g thrust
- Propeller: 9 inch electric prop matched to the motor and ESC
- ESC: 30A class ESC sized for your chosen power setup
- Battery: 3S LiPo in the 1000mAh to 2200mAh range (typical sport setups)
- Radio: minimum 4 channel transmitter and receiver
RBS-KS
5 Items
King Stick FAQ
The King Stick is rated at 2 out of 5 for both build difficulty and flying difficulty, so it is suitable for newer pilots who are comfortable with basic RC flying and want a forgiving everyday model, as well as more experienced pilots who want a relaxed platform for sport and mild aerobatics.
The King Stick is designed as a stable sport and trainer style foam board model that handles relaxed cruising, basic aerobatics and everyday flying well. The wide performance range and stable handling make it a good choice for general park flying, circuits, touch and go landings and simple aerobatic practice like loops and rolls.
To complete the King Stick you will need 4 x 9g servos, a brushless motor that can produce around 800g of thrust, a 9 inch propeller, a suitable ESC, a LiPo battery and at least a 4 channel transmitter and receiver. These items are not included in the kit and must be supplied separately.
The King Stick has a wingspan of 967mm and a length of 735mm. Typical all up weight is around 600g with a dry weight of about 480g and a wing loading of 31g per square decimetre, which gives a good balance of stability and agility for everyday flying.
The airframe is laser cut from high quality Creator Foam Board with matching ply parts, and it is reinforced with carbon tubes, piano wire pushrods and pre bent landing gear. This combination gives a strong, lightweight structure that stands up well to regular flying and the odd hard landing, and is straightforward to repair with foam safe glue if needed.
In the box you get laser cut foam board parts for the fuselage and wing, laser cut ply parts for the firewall, landing gear support and control horns, carbon tubes with piano wire pushrods, pre bent landing gear, wheel collars and a Velcro battery strap. A downloadable King Stick build manual is provided under the attachments tab on the product page so you can follow a step by step guide during assembly.
With its 967mm wingspan and tricycle style landing gear the King Stick is happiest on a small to medium club field or open sports field with reasonably short grass or a smooth strip. It does not need a full size runway, but you should have enough open space to complete safe circuits, approaches and go arounds without flying over people, roads or buildings. This is based on typical practice for similar 1m class foam board sport models.
The King Stick uses a straightforward foam board and ply construction with laser cut parts and clearly defined glue joints, so most builders familiar with foam board techniques can complete the airframe over a few relaxed evenings rather than weeks. A hot glue gun or quality foam safe glue, a sharp knife for trimming, a small drill or reamer for control linkages and basic hand tools are usually sufficient. Actual build time depends on your experience and how much time you spend on finishing and radio setup.
If a product is marked In Stock on our website, it means we physically have the item in stock with us in South Africa and it is ready to ship. If a product is marked Out of Stock, then it is not currently available. You can also check the Product Details tab on the page to see the current stock quantity. We are not a drop shipper, the stock status shown on our site reflects what we actually have on hand.
