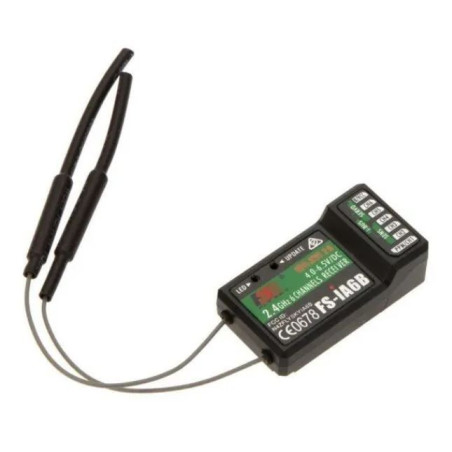

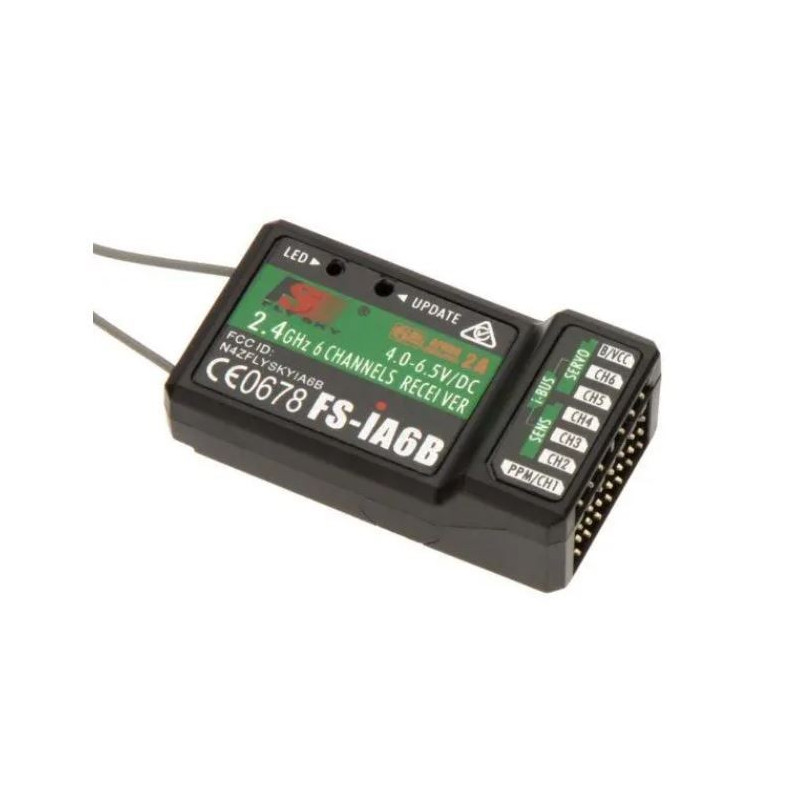

FlySky iA6B 6 Channel Receiver

The FlySky iA6B 6-Channel Receiver is engineered for dependable, interference-free control using the enhanced 2.4GHz AFHDS protocol. Designed to work seamlessly with FlySky i6X and i6 transmitters, this receiver provides consistent signal stability across airplanes, gliders, and helicopters.

The dual antenna design improves reception and range, while GFSK encoding ensures secure communication. The i-Bus interface allows for expansion, and the integrated data acquisition interface enables telemetry feedback when used with compatible transmitters. Its compact form factor and lightweight build make it suitable for a variety of airframe setups.

Specifications:

• Brand Name: FlySky

• Model: FS-iA6B

• Channels: 6

• Frequency Range: 2.4055–2.475GHz

• Band Width Number: 140

• Transmitting Power: ≤20dBm

• RF Receiver Sensitivity: -105dBm

• 2.4G Mode: Enhanced Automatic FM Digital System (AFHDS)

• Encoding: GFSK

• Antenna Length: 26mm x 2

• Input Power: 4.0–6.5V DC

• Dimensions: 47 x 26.2 x 15mm

• Weight: 14.9g

• Colour: Black

• i-Bus Interface: Yes

• Data Acquisition Interface: Yes

• Model Type: Airplane / Glider / Helicopter

Includes:

• 1 x FlySky iA6B 6-Channel Receiver

• 1 x Bind Plug
