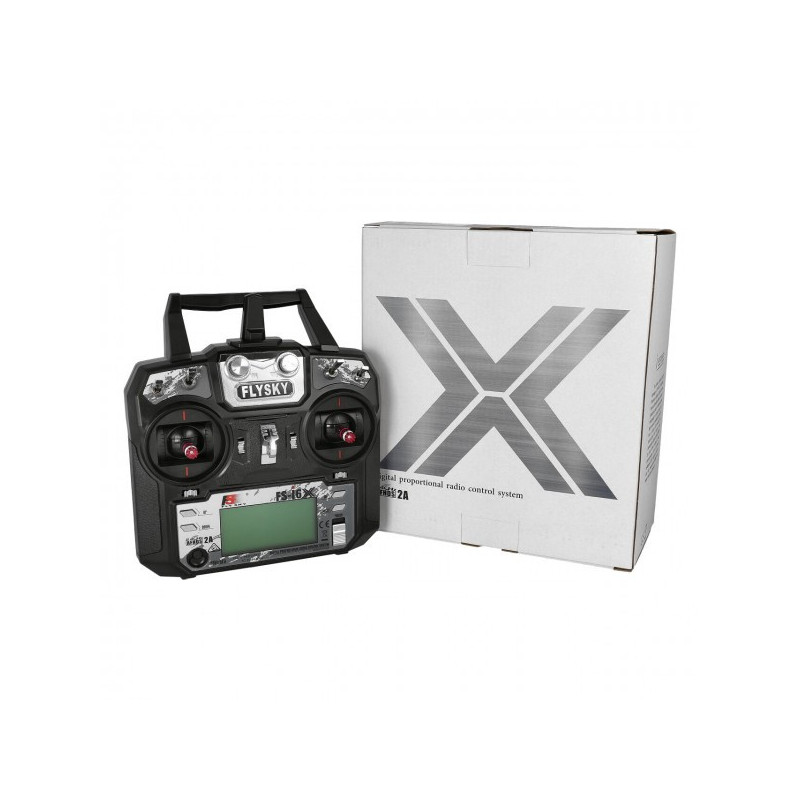

FlySky FS-i6X Transmitter and Receiver

The FlySky FS-i6X is a versatile 2.4GHz 6–10 channel transmitter system, designed for aircraft, helicopters, gliders, drones, and boats. As the refined successor to the FS-i6, it combines ease of use with advanced features for reliable RC control.

Using AFHDS 2A (Automatic Frequency Hopping Digital System, 2nd Generation), the FS-i6X ensures reduced interference, efficient power use, and strong receiver sensitivity. With 135 RF channels and dynamic frequency hopping, it provides stable, secure signals, while 4096-step gimbals deliver precise and responsive control.

Telemetry support (with compatible sensors) enables real-time monitoring such as voltage, altitude, and temperature. The radio also supports i-BUS and PPM protocols, simplifying wiring and increasing compatibility with digital servos and flight controllers.

The included FS-X6B 6-channel receiver features dual antennas, i-BUS and data interfaces, and broad compatibility across FlySky systems.

Specifications

Transmitter (FS-i6X):
- Channels: 6 (expandable to 10 with firmware)
- Protocol: AFHDS 2A, compatible with AFHDS receivers
- RF Range: 2.405 – 2.475GHz (135 channels, frequency hopping)
- Modulation: GFSK
- Resolution: 4096 steps (high-precision gimbals)
- Output Power: <20 dBm
- Sensitivity: –105 dBm
- Stick Modes: Mode 1 / Mode 2 (selectable)
- Telemetry: Supports voltage, altitude, temperature (with sensors)

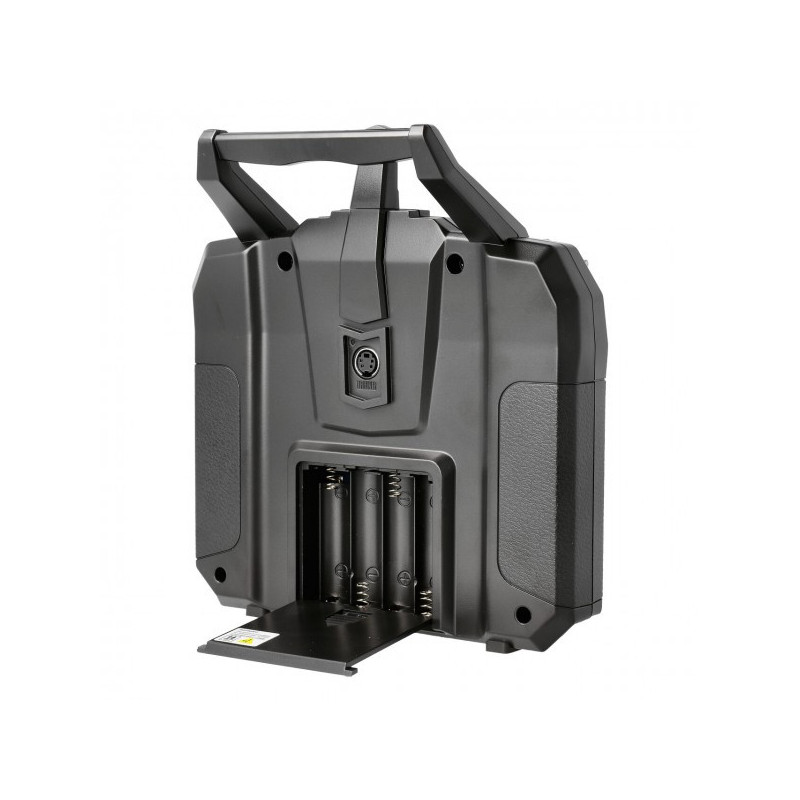

- Power: 4 × AA batteries (not included)
- Display: Backlit LCD screen
- Weight: ~392g (without batteries)
- Dimensions: 174 × 89 × 190 mm

Receiver (FS-X6B):
- Channels: 6 PWM / i-BUS / PPM
- Antennas: Dual diversity antennas
- Signal Output: PWM / PPM / i-BUS
- Range: Up to ~1km (line of sight, environment dependent)
- Voltage Range: 4.0 – 8.4V
- Dimensions: 47 × 26 × 15 mm
- Weight: ~12g

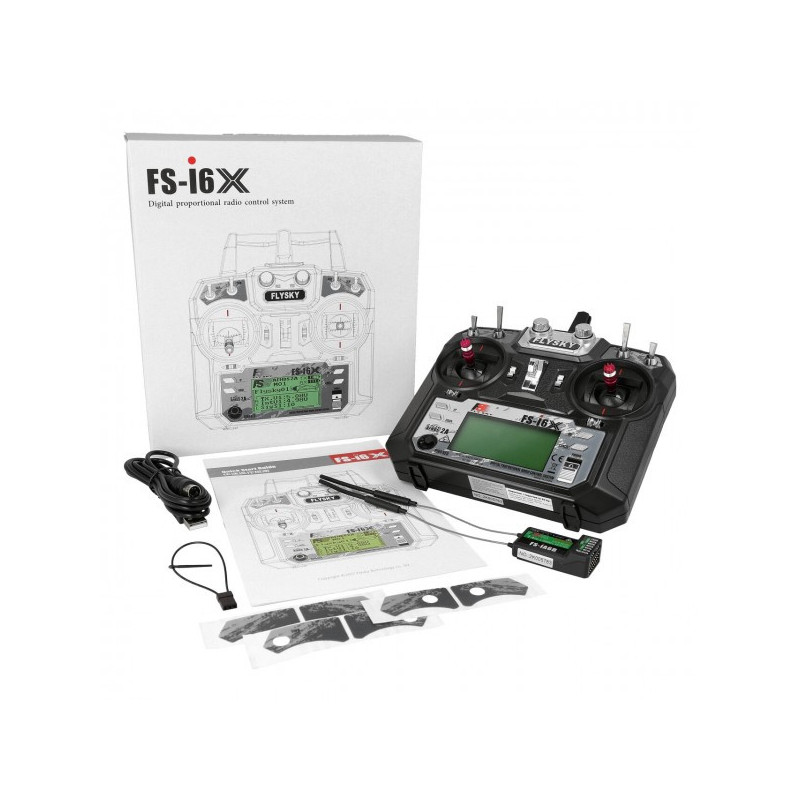

Includes

1 × FS-i6X 2.4GHz 6–10Ch Transmitter
1 × FS-X6B 6Ch Receiver (dual antenna, i-BUS compatible)
1 × USB Data Cable
1 × Sticker Set
1 × User Manual

Requires

4 × AA Batteries (not included)
